Made In Japan HB Series
A wide variety of designs and ultimate ease of use fulfill the demand for an ideal door for the whole family.
Color and Texture Variation
-
<WH>
-
<ML>
-
<MA>
-
<MT>
-
<MW>
-
<MK>
*For MK, all products are produced on order.

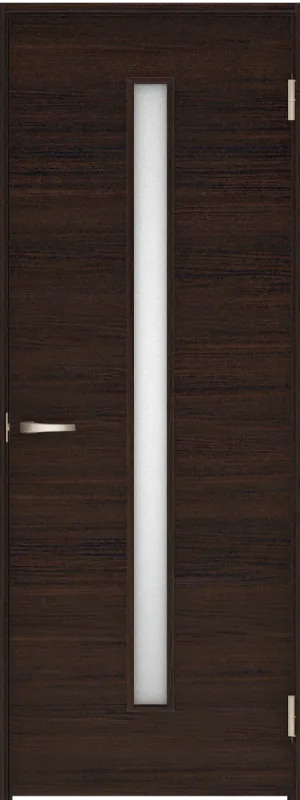

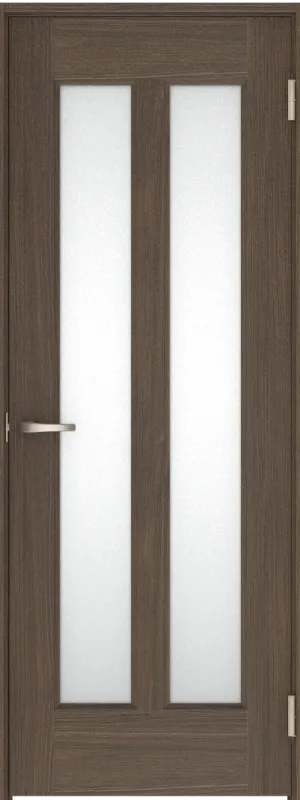

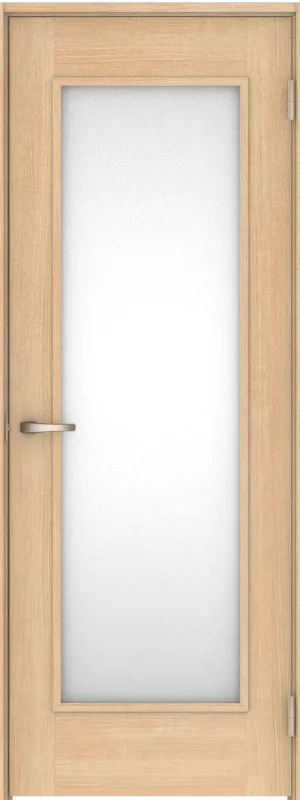

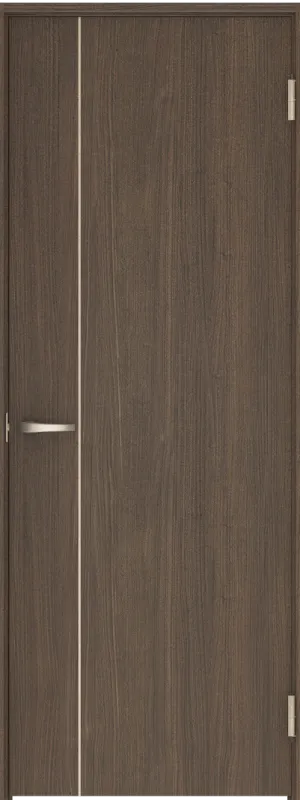

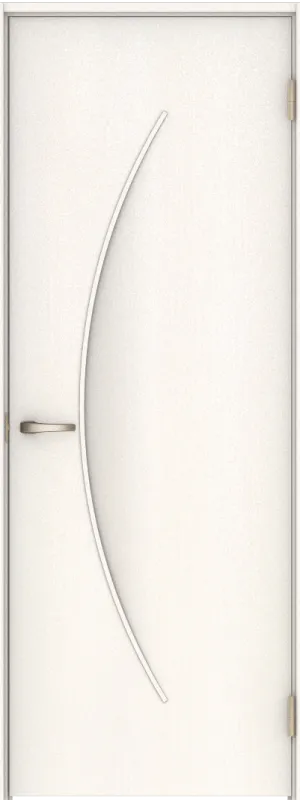

Design
-
00
-
01
-
06
-
08
-
21
-
24
-
C4
-
G1
-
G5
-
K8
-
K9
-
U0
-
U4
-
U8
-
Y4
-
Y8
-
Y1
-
Y5
-
S5
-
S6
-
S7
-
D1
-
D2
-
D3
-
D4
-
D5
-
D6
-
D8
-
41
-
48
-
46
-
55
-
G7
-
76
-
79
Specifications (Door)
| Base material | MDF |
|---|---|
| Surface | Polysand sheet lamination |
| Structure | Flush construction (partially solid core) |
| Formaldehyde regulations | F4-rank according to Labeling Guidelines for Housing Components |
What's polysand sheet?
Polysand sheet is a multi-layer sheet with a sandwiched moisture-proof polyethylene resin layer and used as a surface material for our door products. It effectively reduces the warping of a door by suppressing the moisture transfer in and out of the wood fitting that occurs as the indoor temperature and humidity change.
Specifications (Frame and Parting Edges)
| Base material | MDF (Plywood or MDF for frame core material) |
|---|---|
| Surface | Olefin sheet lamination |
| Formaldehyde regulations | Unregulated parts* |
*Although these parts are not regulated according to Article 20-7 of the Enforcement Ordinance of Construction Standard Law, either some labeling exempted material or JIS/JAS F4-rank material certified by the Minister of Land, Infrastructure, Transport and Tourism is used for interior finishing.
PRODUCTS LINEUP
* The performance values and the certification labels are based on the Japanese test method and standards.
* DAIKEN CORPORATION does not guarantee that the products listed here conform to the laws and regulations of the country or region where they are being used.
